Product advantages

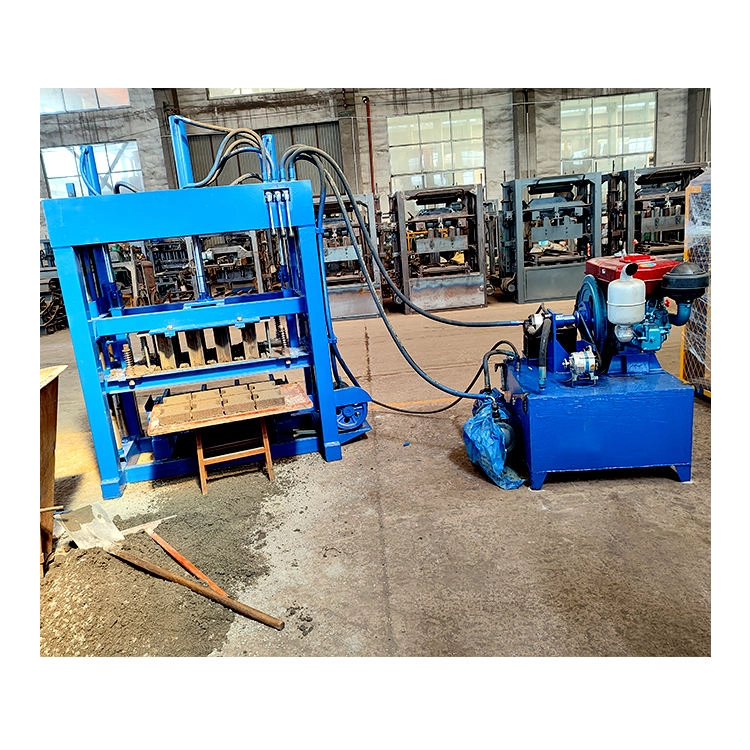

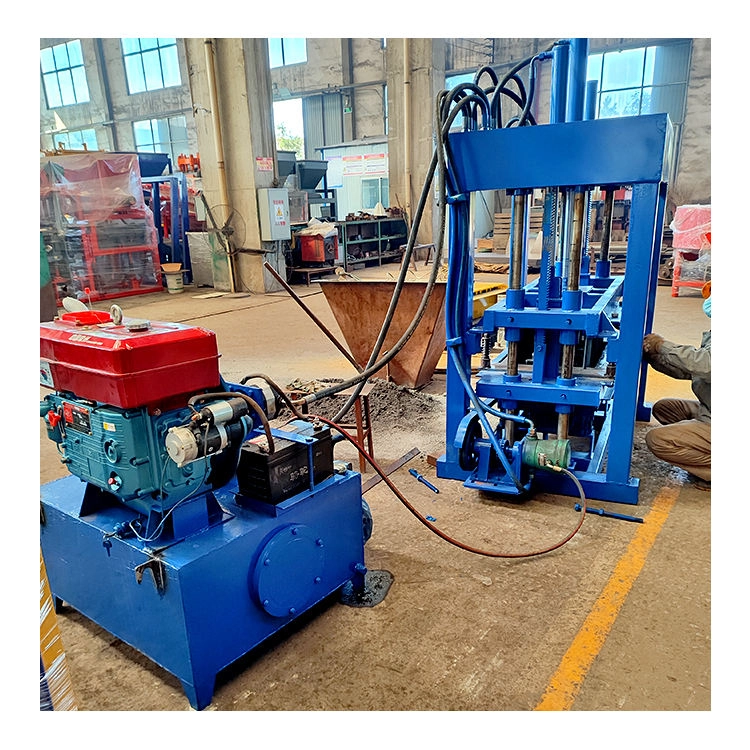

Product Description 1) Simple & strong structure, easy to operate.2)Adopting national certified steel and imported electrical and other key parts 3)It can make different kinds of blocks bricks by chaning moulds( hollow block, solid block, paver brick, curbstone brick) 4)Low investment, high efficiency and high profit. 5)Conformite Europeenne Certification(CE), SGS, ISO9001-2000, TUV Certification. 6)Hydraulic motor and vibration box supply more vibration force! Product Details The host machine can operated independently,it also can be operated with Transmission part and J350/ concrete mixing plant.achieve auto production. 1) The machine is designed by our factory according to the small and medium sized hollow block forming machine, in our factory. 2)The machine adopts four-lead channel steel stander making the equipment more stable. 3)The machine adopts top die push and pull, and automation scraper, which is simple to operate as well as large-scale equipment. 4) Upper mold be raised by reducer. 5) The table adopts super-strong vibration motor to make vertical and directional vibration. 6) At the beam with a pair of supper-strong vertical pressurization vibration,can ensure the good molding results . 7) The upper mold with the bottom mold compressing make the brick with good quality, large density, and high strength. Specifications of QT4-3 0 small cheap automatic concrete block machines for small businesses in Africa Technical Parameter Detailed Data Overall Dimension 1380*1000*2200mm Main vibration form Platform vibration Cycle time 40s Overall weight 1500kg Pallet Size 850*450mm Raw Materials crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes Features 1. Super strong vibration motor. 2. solid and high block intensity 3. The frame of the host machine is used hight quality 1 0*10CM square tube steel, all from the best steel supplier Laigang,Jinggang. 4. Adopts top die push and pull and the automatic scraper, which is simple to operate as well as the large scale equipment. 5. More than 500sets per year sold to Middle Asia Market. Operating Handal of diesel brick machine Spring return structureStable performance The control flow is stable The output is uniform and the oil intake , oil return stop are accurate Water-cooling system of diesel brick machine A high quality water-cooling system ensure water pipes realize circulating cool water to cool the hydraulic oil, which is very necessary in tropical regions Hydraulic Cylinder of diesel brick machine The circle mark is obvious, never explode the cylinder.Full stroke, Tight lock. No oil leakage. Hydraulic Tube of diesel brick machine Steel wire spiral hoseBear high temperature and high pressure Flange interface, sealed well No oil leakage. Block mould of diesel brick machine Carburizing, heat treatment.Wear resistance. Wire cutting technology. Some error carbon dioxide protection welding insure the mold is firm and doesn't crack. Title goes here of diesel block machine Dual-axis synchronous inertia is larger, and the vibration force is stronger. With its own breathing valve, it can evacuate the excessive oil temperature caused by the rotation. Professional gear steel integral molding, high strength. One machine Can produce all type block Main production specification and theoretical productivity of QTJ4-30 semi-automatic multi-function concrete block making machine in Africa Item Specification size(mm) Quantity per moulding (pcs/mould) Cycle moulding (s) Output per hour (pcs/shift) Hollow brick 400*150*200 6inch 5 30 4480 Hollow brick 400*120*200 5inch 6 30 5760 Hollow brick 390*190*190 8inch 4 30 3840 Paver block 220*110*50 12 30 11500
