Product advantages

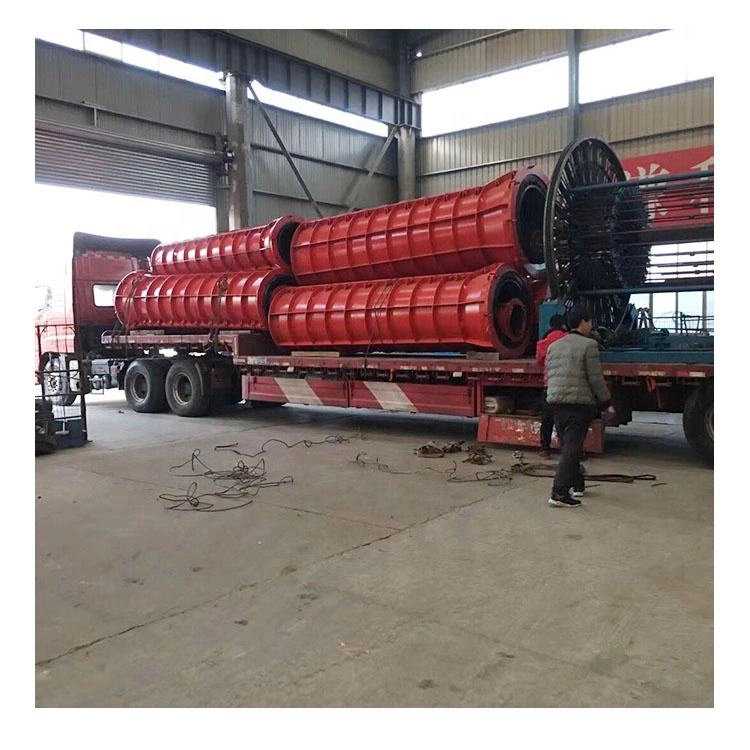

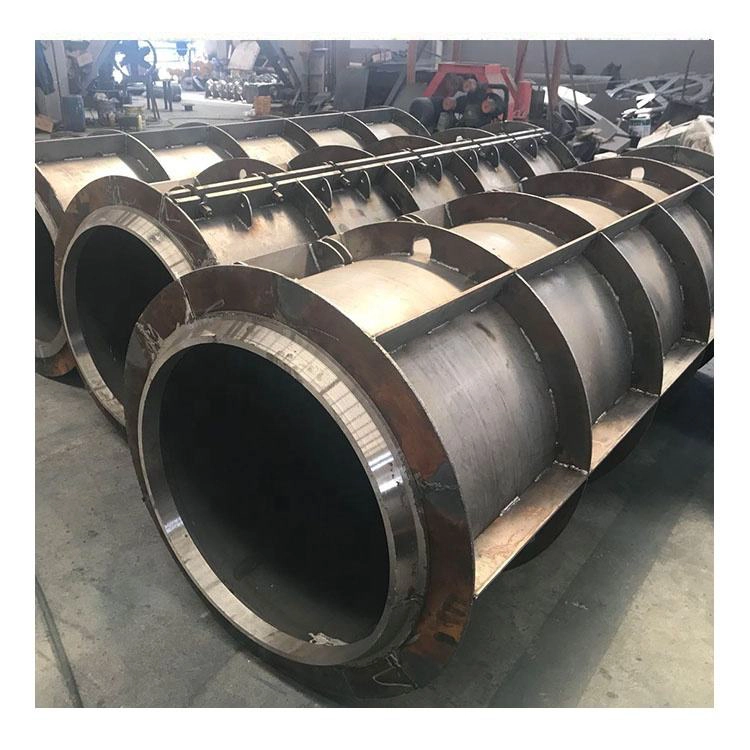

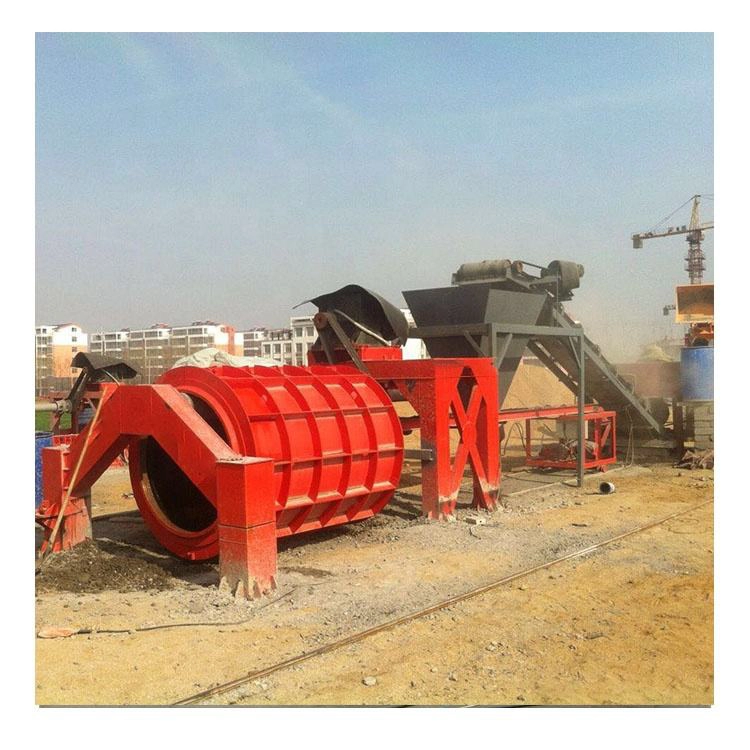

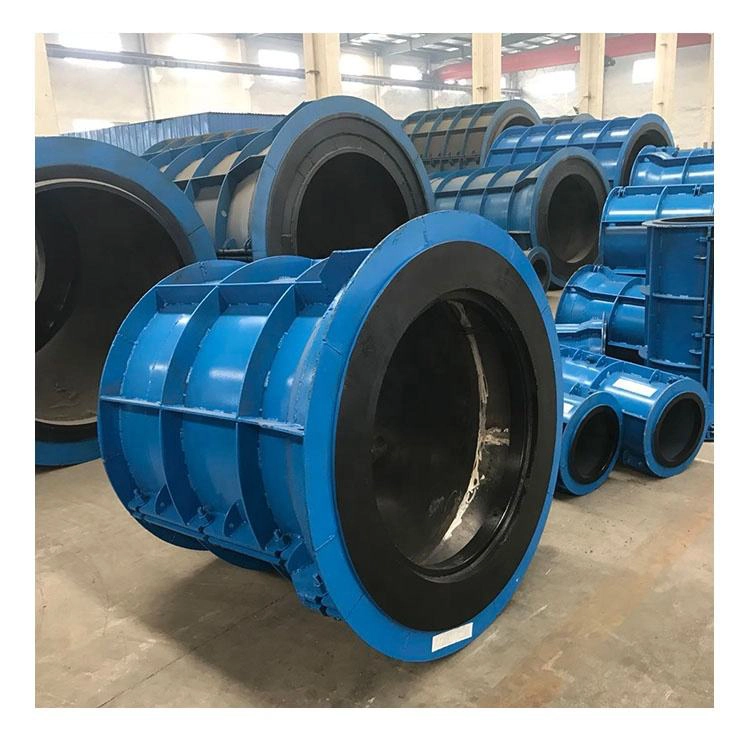

Concrete pipe molds concrete pipe machine diameter from 300mm-2000mm rcc pipe making machine Suspension roller type concrete pipe machine is a kind of perfect machine and equipment to produce reinforced concrete pipes and pre-stressed concrete pipe. This machine is capable to make pipes with diameter from 300-2000mm and with length from1-3meters. We can design many kinds of the pipe joint, including flush joint, socket & spigot joint And all the concrete pipes are widely used in administrative drainage, agricultural field irrigation, road culvert and deep water well.. Usually different country have different material ,so formula have some difference .usually we recommend 15-20% cement , 25-30% sand, 50-60% small stone. The capacity are different when the pipe size different ,usually 8-15 minutes/per pipe . per hour have 6-8 pipes , depend on the labor efficiency and machinery automatic level. Moulds type: 1. Plain joint 2. socket and spigot joint 3. tongue and groove Diameter(mm) diameter host shaft (mm) total power (kw) 300-600 180-220 18.5 800-1500 320 37 1500-2000 450 90 General length is from 1meter to 3 meters. Detailed Image Steps to make concrete pipe: concrete water pipe making machine is new and high efficiency model concrete pipe producing system ,it absorb Europe technology and experience ,it could produce diameter Φ300-2000mm, usually length 1000-2000mm ( length can be extend into max 3000-4000mm) .total it need about 6-8 people to operate whole line ,depend on capacity . automatic welding machine first workers prepare the steel cage ,this cage can be made by manual ,also can be made by automatic machinery ,this machine could weld cage by automatic way. prepare all the molds. 1. one worker clear the mould ,and brush de-mould oil 2.use 5-10Ton crane to lift steel cage into mould, then use screw nut to fix the mould 3. lift the mould in to overhang rolling machine ,lock the machine and start running 4. JS500 or JS750 machine mix the cement ,sand ,stone material ,then feed to the mould by automatic material feeding belt conveyer system . mould will be under the high speed running ,the material will be press into mould through main machine main shaft. (5): after some minutes ,when material fill the mould ,then stop and open the machine ,use 5-10Ton crane to lift the mould with pipe to empty yard place. (6): after 3 hours ,we could open the mould , then we have 5-7 days water curing . Packing & Delivery
