Product advantages

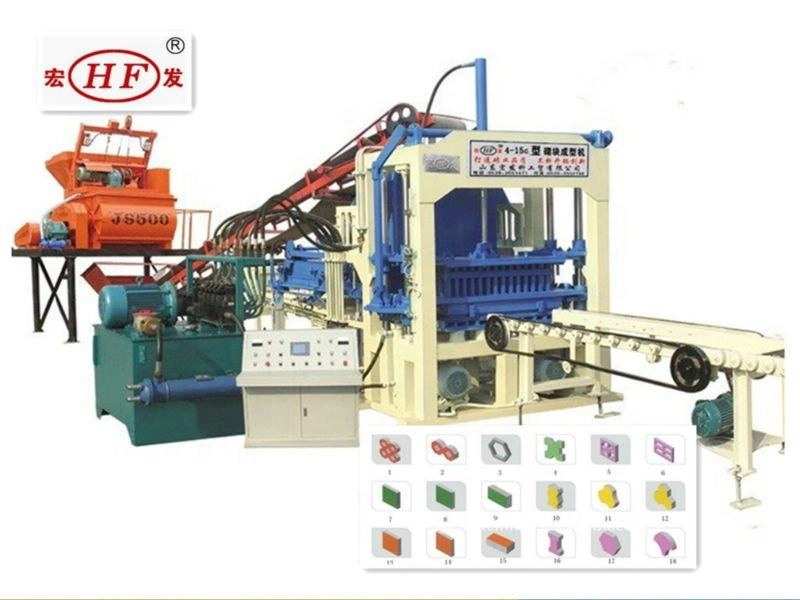

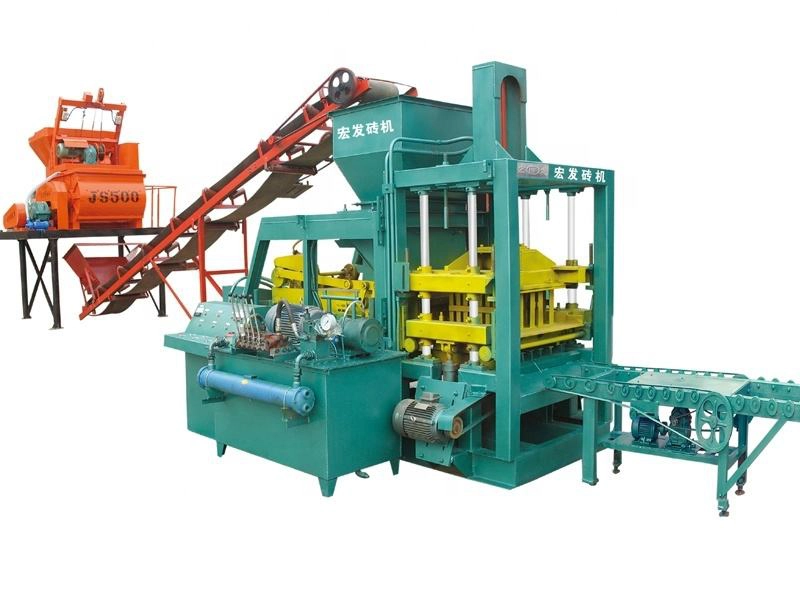

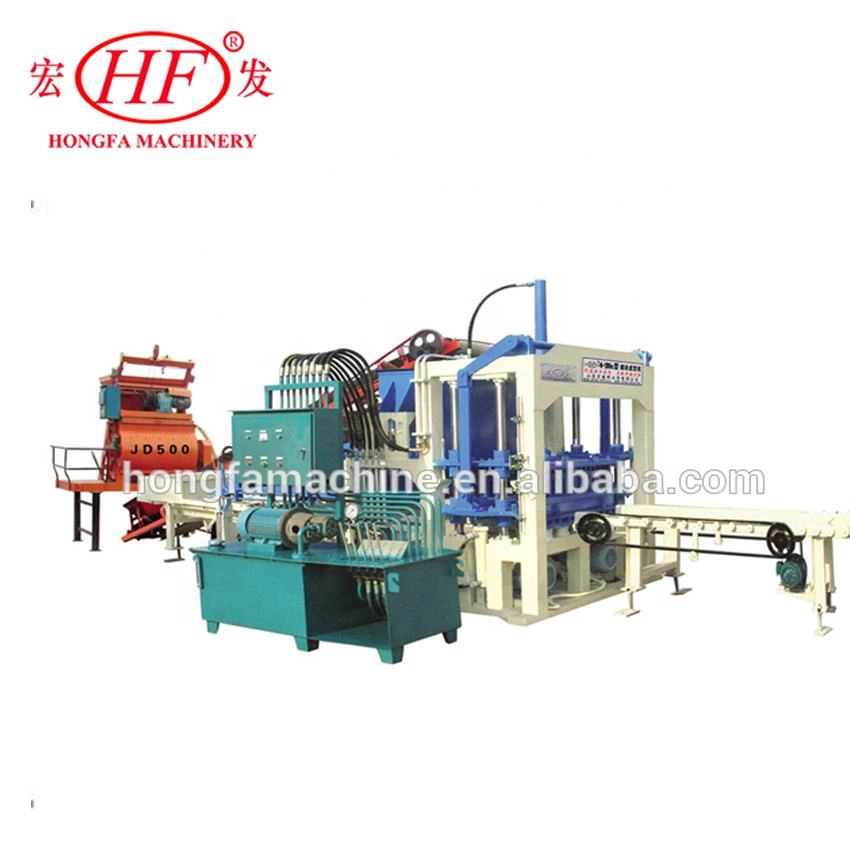

Product Description qt4-20c Semi-automatic Hydraulic Concrete Hollow Pavers Block Making Machine Construction block making machine semi-automatic Technical Parameter Detailed Data Overall Dimension 7310*2500*2810mm Rated Pressure 16Mpa Main Vibration Form Platform Vibration Virbration frequency 2800-4500r/min Pallet Size 1050*550mm Mould cycle 15s Exciying 60kn Overall power 28kw Weight 5T Main production specification and theoretical productivity Item Specification size(mm) Quantity per moulding (pcs/mould) Cycle moulding (s) Output per hour (pcs/shift) Porous brick 240*100*60 16 16-20 25600 Solid brick 240*115*53 28 13-15 53760 Hollow brick 390*190*190 4 15-20 7680 Advantages of Block Making Machine to Produce Concrete Brick PLC The control system is equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it only needs a trained person for operation rather than a professional one. Hydraulic atation It is a compact oil hydraulic machine according to the international standards.Many components from abroad ensure the quality of machine and long service life. Vibration system The vibration system contains platform and mould vibration ao the productions is very close-grained and produced quickly. Mould Applied to produce varies sizea and typs of comcrete blocks and bricks by replacing mould with corresponding specifications. Feeding system Particular storage and discerption material system icsure thefeeding accuracy and avooding the effect of exterior material. Forward transfer Simple operation saves time and effort.
